Types of Simple Machines Worksheets

Simple machines are fundamental tools that help us do work with less effort. If you're an educator searching for engaging and informative resources to teach your students about simple machines, you've come to the right place. In this blog post, we'll explore different types of worksheets that focus on the entity and subject of simple machines.

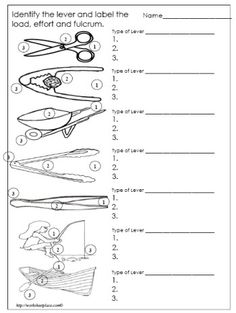

  Levers and Simple Machines Worksheet

---

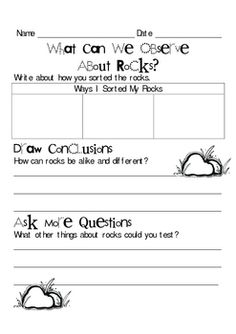

  Kindergarten Science Observation Worksheets

---

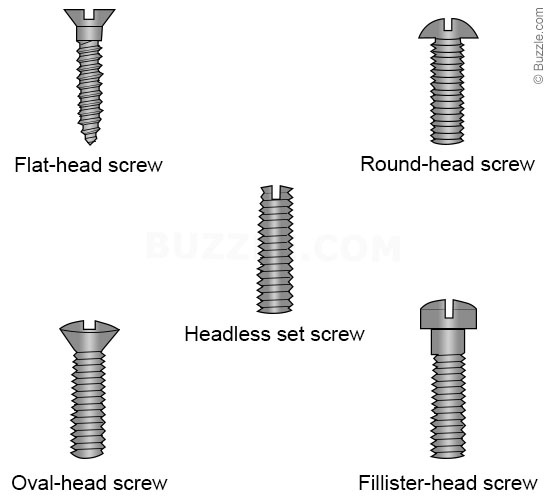

  Types of Screws Simple Machines

---

  Levers and Pulleys Worksheets

---

  Examples of Screws as Simple Machines

---

  Julius Caesar Crossword Puzzle Answers

---

  Bunsen Burner Parts Diagram

---

  Preschool Science Activity for Transportation

---

What is a simple machine?

A simple machine is a basic mechanical device that helps make work easier by multiplying or changing the direction of force. Examples of simple machines include levers, pulleys, incline planes, screws, and wheels and axles.

What are the six types of simple machines?

The six types of simple machines are the lever, wheel and axle, pulley, inclined plane, wedge, and screw.

Describe the lever.

A lever is a simple machine consisting of a rigid beam or bar that pivots around a fixed point called a fulcrum. It is used to amplify force, gain mechanical advantage, or change the direction of a force. Levers are categorized into three types based on the relative positions of the fulcrum, effort (force applied), and load (resistance): first-class levers have the fulcrum placed between the effort and load, second-class levers have the load between the fulcrum and effort, and third-class levers have the effort between the fulcrum and load.

Explain how a wheel and axle works.

A wheel and axle is a simple machine that consists of a large wheel attached to a smaller axle. When force is applied to turn the wheel, it causes the axle to rotate with much greater force than the input force applied. This amplification of force allows for easier movement of heavy objects or machinery, making tasks such as lifting, pulling, or transporting objects more manageable. The wheel and axle work together to convert rotational motion into linear motion, providing mechanical advantage and efficiency in various applications.

How does an inclined plane help with moving objects?

An inclined plane helps in moving objects by reducing the amount of force needed to lift or move them vertically. The slope of the inclined plane allows for the force to be exerted over a longer distance, making it easier to overcome gravity and move objects up or down the plane with less effort. This concept is based on the principle of work and energy conservation, where the work done is the same, but the force is spread out over a longer distance along the inclined plane, resulting in mechanical advantage for moving heavy objects.

What does a pulley do? How does it work?

A pulley is a simple machine that uses a wheel and a rope to lift or move objects. It works by reducing the amount of force required to lift an object by distributing the force over multiple ropes and pulleys, allowing for easier lifting. As the rope is pulled over the wheel, the force is distributed throughout the system, making it easier to lift heavy objects.

Describe how a screw is useful as a simple machine.

A screw is useful as a simple machine because it allows for the conversion of rotational motion into linear motion. This enables the screw to drive into materials or lift heavy loads with less effort, by applying a small amount of force over a greater distance. Additionally, the threads of a screw increase the mechanical advantage of the machine, making it easier to overcome resistance and perform work efficiently. This makes screws essential tools in various applications, such as construction, manufacturing, and technology.

How does a wedge help with cutting or splitting objects?

A wedge helps with cutting or splitting objects by concentrating force over a small area, creating a mechanical advantage that allows the wedge to push through the material with less effort. When a wedge is driven into an object, such as wood or metal, it uses its sharp edges to separate the material apart by forcing it apart along its grain or natural weak points. This makes cutting or splitting objects easier and more efficient than trying to achieve the same result using brute force alone.

Explain the concept of mechanical advantage and how it relates to simple machines.

Mechanical advantage is a measure of how much a machine multiplies the input force put into it. It is calculated by dividing the output force of the machine by the input force applied. Simple machines, such as levers, pulleys, and inclined planes, are designed to provide a mechanical advantage by either increasing the force applied or changing the direction of the force to make work easier. The concept of mechanical advantage helps us understand how simple machines can help us accomplish tasks that would otherwise require more effort or force.

Give an example of a complex machine that incorporates multiple types of simple machines.

An example of a complex machine that incorporates multiple types of simple machines is a car. A car includes wheels and axles for movement, levers in the form of pedals and steering wheels for control, pulleys in the engine and transmission system, inclined planes in the form of ramps for entering and exiting the vehicle, screws in various components like the engine and suspension, and wedges in the form of tire jacks for changing tires.
