Convex Lenses Practice Worksheet Key

This blog post is aimed at students studying optics or physics who are in need of a comprehensive resource for practicing and understanding convex lenses. In this post, we will be providing the answer key for a convex lenses practice worksheet, which is designed to help students solidify their knowledge of this topic through a series of practical questions and problems.

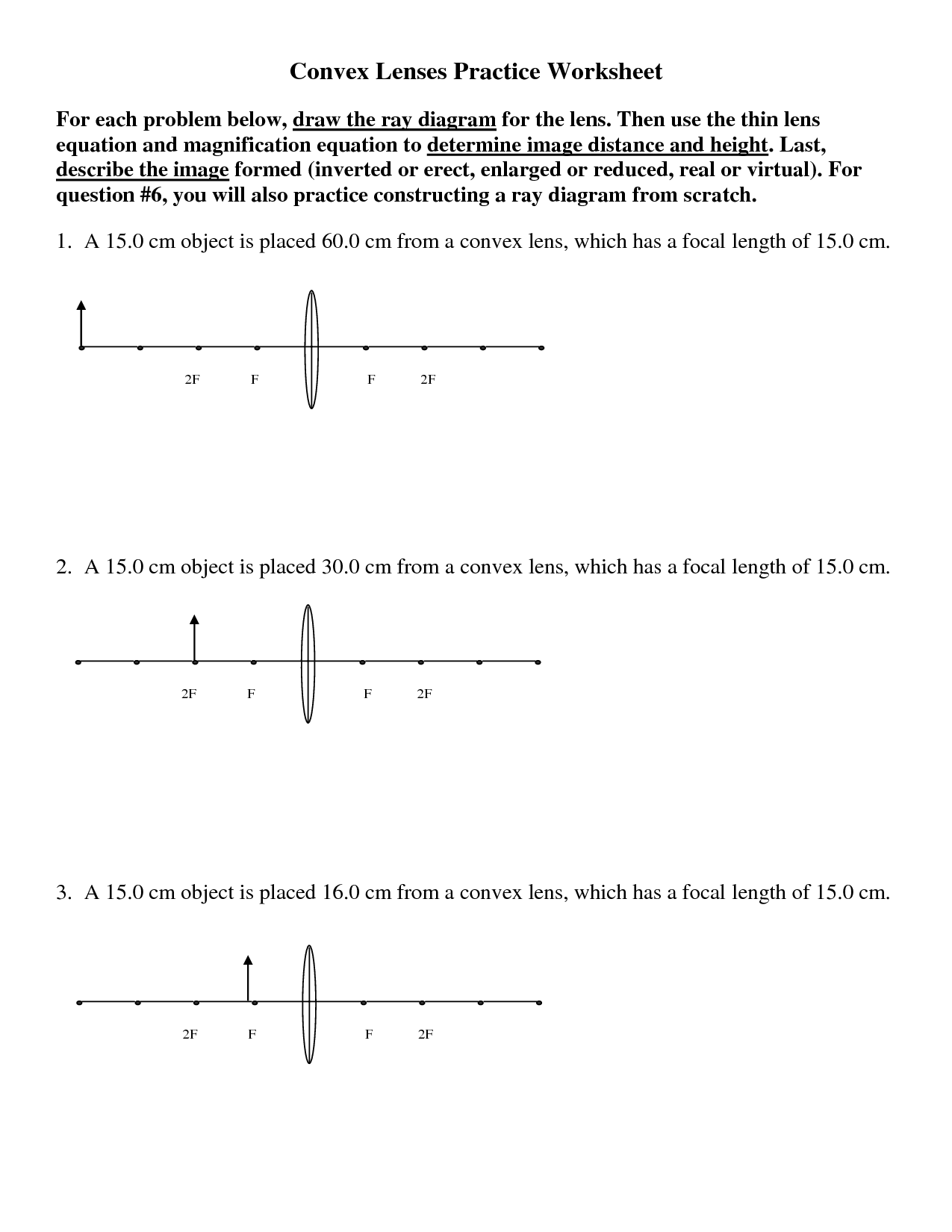

  Convex Lenses Practice Worksheet

---

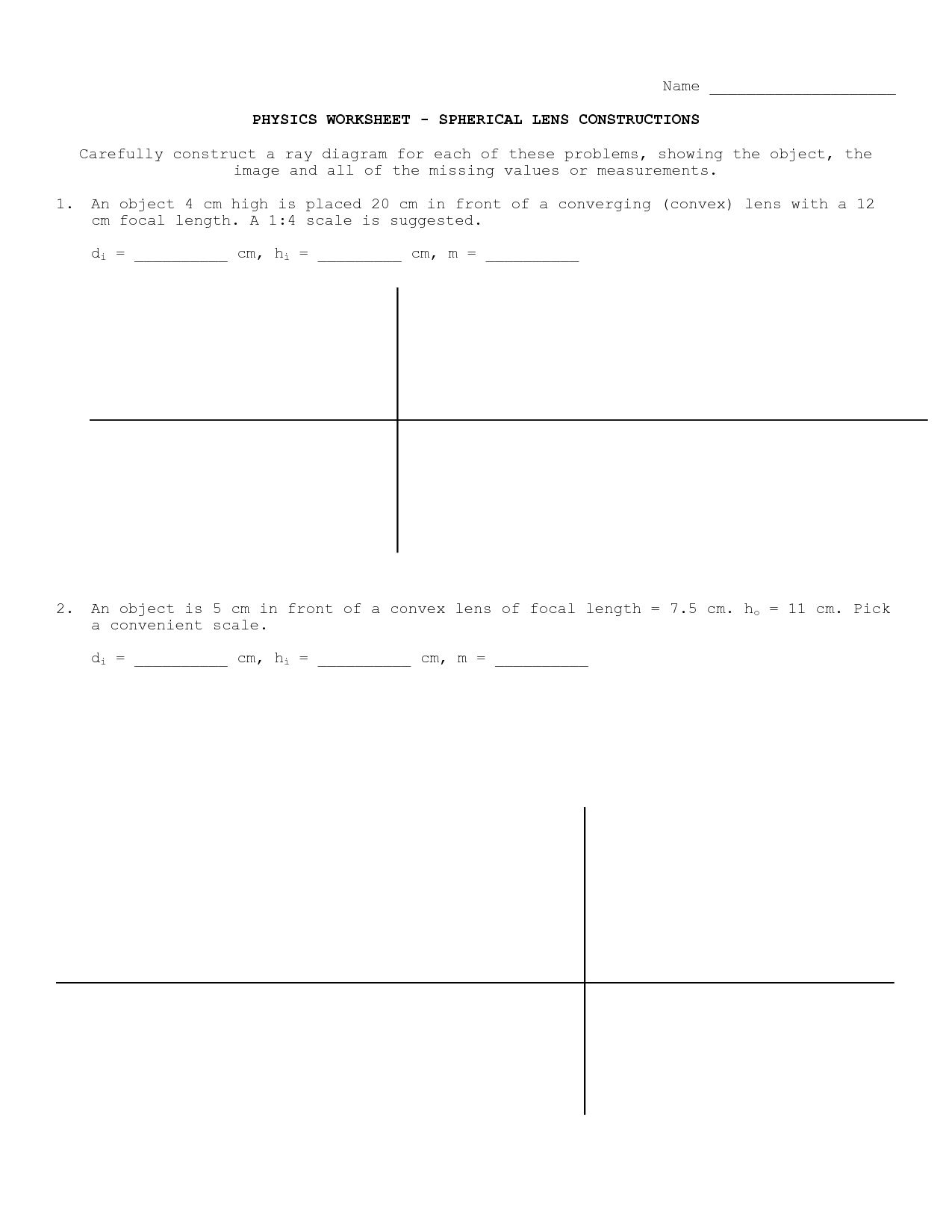

  Concave and Convex Lenses Worksheet

---

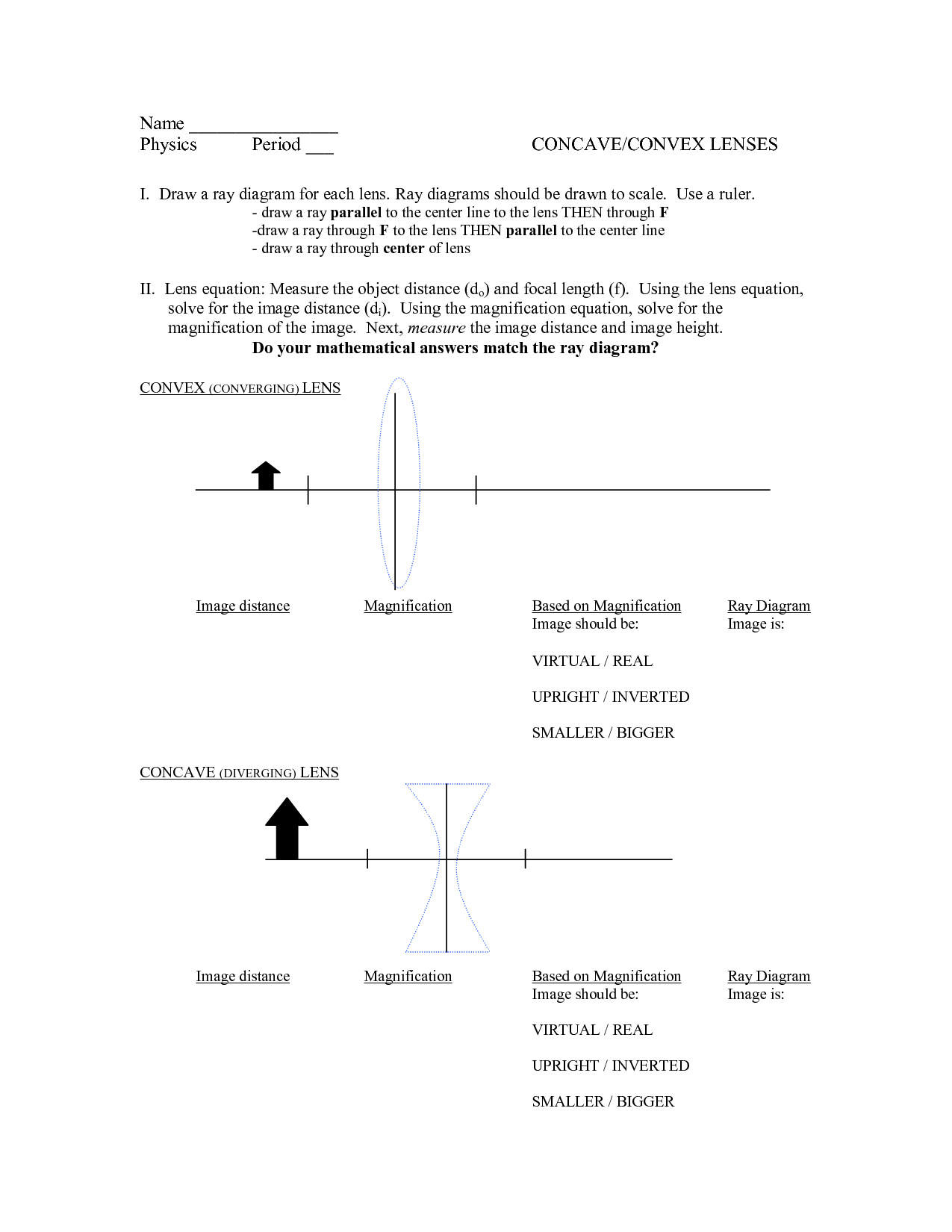

  Concave and Convex Lenses Worksheet

---

  Concave Mirror Ray Diagram Worksheet

---

  Concave Mirror Ray Diagram Worksheet

---

  Lenses Ray Diagram Worksheet

---

  Lens Ray Tracing Worksheet

---

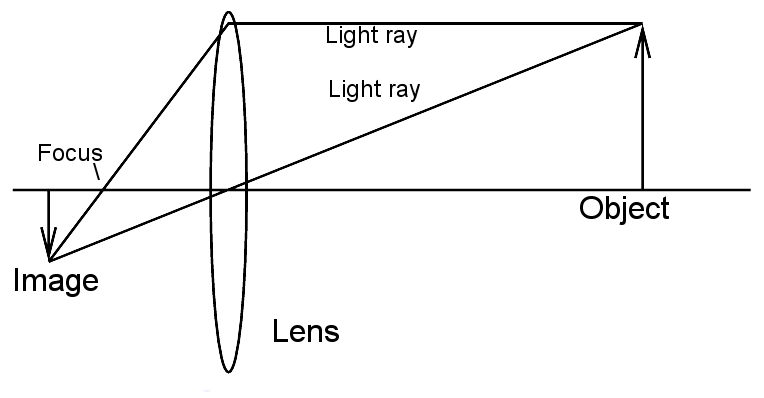

  Convex Lens Examples

---

  Lens Ray Diagram Worksheet

---

  Light Reflection and Refraction Worksheet

---

What is a convex lens?

A convex lens is a lens that is curved outward on both sides, causing light rays passing through it to converge at a focal point on the opposite side of the lens. This type of lens is thicker at the center than at the edges and is commonly used in magnifying glasses, cameras, and eyeglasses to converge light rays to produce a magnified image or correct vision problems like nearsightedness.

How does a convex lens differ from a concave lens?

A convex lens is thicker at the center and thinner at the edges, causing it to converge light rays to a focal point, whereas a concave lens is thinner at the center and thicker at the edges, causing it to diverge light rays away from a focal point. The convex lens is used to converge light for focusing images, while the concave lens is used to diverge light for spreading out images.

What is the focal point of a convex lens?

The focal point of a convex lens is the point where parallel rays of light converge after passing through the lens.

How does the thickness of a convex lens affect its focal length?

The thickness of a convex lens does not affect its focal length. The focal length of a convex lens depends on the curvature of its surfaces and the refractive index of the material it is made of. Thicker or thinner lenses can have different shapes and sizes, but as long as the curvature and refractive index remain constant, the focal length will not change.

What is the relationship between the object distance and the image distance in a convex lens?

In a convex lens, the relationship between the object distance (distance of the object from the lens) and the image distance (distance of the image from the lens) is given by the lens equation: 1/f = 1/do + 1/di, where f is the focal length of the lens, do is the object distance, and di is the image distance. The lens equation shows that as the object distance changes, the image distance will also change accordingly to maintain the relationship defined by the lens equation and properties of the convex lens.

What are the characteristics of the image formed by a convex lens for objects placed beyond the focal point?

When an object is placed beyond the focal point of a convex lens, the image formed is real, inverted, and located on the opposite side of the lens. The image is smaller in size than the object and it is also located further away from the lens than the focal point. Additionally, the image is real and can be projected onto a screen.

How does the size of the object affect the size of the image formed by a convex lens?

The size of the object can affect the size of the image formed by a convex lens. If the object is smaller, the image formed may also be smaller. Conversely, if the object is larger, the image formed can also be larger. The relationship between the size of the object and the size of the image is generally proportional, meaning that a change in the size of the object will result in a corresponding change in the size of the image formed by the convex lens.

How does the distance between the object and the lens affect the size of the image formed by a convex lens?

The distance between the object and the lens affects the size of the image formed by a convex lens. When the object is placed closer to the lens than its focal length, the image is enlarged and appears on the same side as the object, forming a virtual image. However, when the object is placed beyond the focal length of the lens, the image is smaller and formed on the opposite side of the lens, creating a real image.

How does the shape and curvature of a convex lens affect its ability to refract light?

The shape and curvature of a convex lens determine its ability to refract light by influencing how the light rays converge or diverge when passing through the lens. A lens with a greater curvature will bend light more strongly, causing it to converge to a focal point closer to the lens. This results in greater magnification. Additionally, the shape of the lens affects its ability to correct for certain visual impairments, such as nearsightedness or farsightedness, by adjusting the focal point of light rays to focus correctly on the retina.

What are some real-life applications of convex lenses?

Convex lenses have various real-life applications, such as in eyeglasses to correct vision problems, cameras and projectors to focus light onto a sensor or screen, magnifying glasses to enlarge and enhance the view of small objects, telescopes to gather and focus light from distant objects, and even in laser technology to shape and direct laser beams for cutting, welding, or engraving processes.
